Stone Anchoring & Setting

Dimensional Stone:

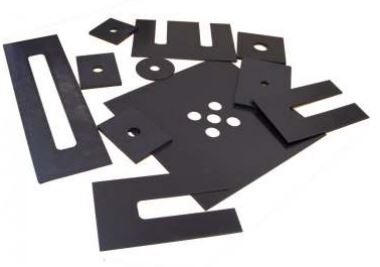

SHIMS

horseshoe stone shims

horseshoe stone shims horseshoe stone shimsHorseshoe Shims

Used to plumb stone anchors.

Standard Sizes:

  • 1/16″ Plastic Horseshoe Shim
  • 1/8″ Plastic Horseshoe Shim
  • 1/4″ Plastic Horseshoe Shim
  • 3/8″ Plastic Horseshoe Shim

Product Data Sheet   shoppingcart_blue Purchase Online
Test Data


High Density Stone Setting Shims High Density Stone Setting ShimsHigh Density Setting Shims

(Korolath Style)

Used to level and plumb stone.

Standard Sizes:

  • 1/16″ X 2″ X 2″ High Density Plastic Shim
  • 1/8″ X 2″ X 2″  High Density Plastic Shim
  • 1/4″ X 2″ X 2″  High Density Plastic Shim
  • 3/8″ X 2″ X 2″ High Density Plastic Shim
  • 1/2″ X 2″ X 2″ High Density Plastic Shim
  • Other sizes available call 1-800-659-4731 or sales@masonpro.com

Product Data Sheet shoppingcart_blue Purchase Online
Test Data


Thin Stone Setting Shims
Thin Stone Setting ShimsThin Stone Setting Shims

Used to space, level & plumb stone.

Standard Sizes:

  • 1/16″ X 1″ X 1″
  • 1/8″ X 1″ X 1″
  • 1/4″ X 1″ X 1″
  • 3/8″ X 1″ X 1″
  • Other sizes available call 1-800-659-4731 or sales@masonpro.com

Product Data Sheet

LIFTING TOOLS



Stone Lifting Clamps Stone Lifting ClampsStone Lifting Clamps

Stone-Lifting clamps are furnished with a 1/2″ stud at the base of the opening for added safety and are capable of lifting up to two tons.

Maximum
Opening
Depth
Capacity
(Tons)
Weight
Lifting
Capacity
3″
2-1/2″
3/4
8 lbs.
1500 lbs.
5″
3-1/2″
1
23 lbs.
2000 lbs.
8-3/4″
4-1/2″
2
79 lbs.
4000 lbs.

 Product Data Sheet shoppingcart_blue Purchase Online

STONE ANCHORS



Powder Coated (Color) Anchors – Rain Screen & Exposed Applications

StoneAnchor_pc StoneAncor_pc2    Untitled-1
(Samples)

All MASONPRO Anchors are available for Powder Coated Stainless Steel with Colors to Match for Rain Screen Applications!




‘Split Tail’ Anchors

Split-Tail Stone Anchors

 Split Tail Stone Anchors Split Tail Stone AnchorsStandard Sizes:

  • 1/8″ thick x 1-1/4″ wide x length to suit with 3/4″ split tail
  • Lengths: 1-1/2″, 2″, 2-1/2″, 3″, 3-1/2″, 4″, 4-1/2″, 5″ & 5-1/2″
  • Other thicknesses (3/16″, 1/4″…) and widths available 1-800-659-4731 or sales@masonpro.com

Finishes:

  • Type 304 Stainless Steel – Natural Stone
  • Hot Dip – Precast or Cast Stone
  • Powder Coated Stainless

Product Data Sheet  SDS LEED shoppingcart_blue Purchase Online
Request A Quote


‘Z’ Anchors

Z Bend Stone Anchors

Z Bend Stone Anchors Z Bend Stone AnchorsStandard Sizes:

  • 1/8″ thick x 1-1/4″ wide x length to suit with 3/4″ bend
  • Lengths: 1-1/2″, 2″,  2-1/2″, 3″,  3-1/2″, 4″, 4-1/2″, 5″ & 5-1/2″
  • Other thicknesses (3/16″, 1/4″…) and widths available 1-800-659-4731 or sales@masonpro.com

Finishes:

  • Type 304 Stainless Steel – Natural Stone
  • Hot Dip – Precast or Cast Stone
  • Powder Coated Stainless

Product Data Sheet  SDS LEED shoppingcart_blue Purchase Online
Request A Quote


‘L’ Anchors

L Stone Anchor

 Standard Sizes:

  • 1/8″ thick x 1-1/4″ wide x length to suit with holes punched to suit
  • Lengths: 2″, 3″, 4″, 5″ & 6″
  • Other thicknesses (3/16″, 1/4″…) and widths available 1-800-659-4731 or sales@masonpro.com

Finishes:

  • Type 304 Stainless Steel – Natural Stone
  • Hot Dip – Precast or Cast Stone
  • Powder Coated Stainless

Product Data Sheet  SDS LEED shoppingcart_blue Purchase Online
Request A Quote


 L Anchor with Dowel ‘L’ Anchor with Dowel

L Anchor with Dowel



Standard Sizes:

  • 1/8″ thick x 1-1/4″ wide x length to suit with holes punched to suit
  • Lengths: 2″, 3″, 4″, 5″ & 6″
  • Other thicknesses (3/16″, 1/4″…) and widths available 1-800-659-4731 or sales@masonpro.com
  • Stock Dowel Sizes: 3/8″ diameter x 3″, 4″, 6″ & 8″

Finishes:

  • Type 304 Stainless Steel – Natural Stone
  • Hot Dip – Precast or Cast Stone
  • Powder Coated Stainless

Product Data Sheet  SDS LEED
Request A Quote


 ‘U’ Anchor

U Stone Anchor

Standard Sizes:

  • 1/8″ thick x 1-1/4″ wide x length to suit with 3/4″ bend
  • Lengths: 1-1/2″, 2″, 2-1/2″, 3″, 3-1/2″, 4″, 4-1/2″, 5″ & 5-1/2″
  • Other thicknesses (3/16″, 1/4″…) and widths available 1-800-659-4731 or sales@masonpro.com

Finishes:

  • Type 304 Stainless Steel – Natural Stone
  • Hot Dip – Precast or Cast Stone
  • Powder Coated Stainless

Product Data Sheet SDS LEED shoppingcart_blue Purchase Online
Request A Quote


L-Bend Anchor

L Bend Stone Anchor

 Standard Sizes:

  • 1/8″ thick x 1-1/4″ wide x length to suit with holes punched to suit
  • Lengths: 4″, 4-1/2″, 5″ … 8″
  • Other thicknesses (3/16″, 1/4″…) and widths available 1-800-659-4731 or sales@masonpro.com

Finishes:

  • Type 304 Stainless Steel – Natural Stone
  • Hot Dip – Precast or Cast Stone
  • Powder Coated Stainless

Product Data Sheet  SDS LEED
Request A Quote

 LBendForm


 Custom Stone Anchors
Custom Stone Anchors

Available in:

Finishes:

  • Type 304 Stainless Steel – Natural Stone
  • Hot Dip – Precast or Cast Stone
  • Powder Coated for Rainscreen Application

Product Data Sheet SDS LEED
Request A Quote

anchor-custom1


STONE DOWELS



Dowels stone

Dowels stone

Standard Dowels

Anchor/tie stone to stone or to other substrates.

Standard Sizes:

  • 3/8″ dia. x 3″
  • 3/8″ dia. x 4″
  • 3/8″ dia. x 6″
  • 3/8″ dia. x 8″
  • Other sizes available call 1-800-659-4731 or sales@masonpro.com

Finish:

  • Stainless Steel

Product Data Sheet  SDS LEED shoppingcart_blue Purchase Online
Request A Quote


Spring Loaded Dowels Stone Spring Loaded Dowels

Anchor/tie stone to stone or to other substrates.

Standard Size:

  • 3/8″ Dia. x 3″ Spring Loaded

Finish:

  • Stainless Steel

Product Data Sheet  MSDS LEED shoppingcart_blue Purchase Online

M-1



M-1
Stone Anchor Structure Adhesive/Filler

Serves as an excellent anchor sealer/filler for limestone and cast stone anchor connections.
It is a moisture curing, polyether adhesive sealant/filler designed for applications in damp, dry or cold climates.

Product Data SheetSDS shoppingcart_blue Purchase Online

FASTENERS







Powers Stainless Steel Expansion NailExpansion Pins

Stainless Steel Nail

The Zamac Nailin is a nail drive anchor which has a body formed from Zamac alloy. Drive nails are available in stainless steel or carbon. The anchor can be used in concrete, block, brick or stone.

Available in:

  • 1/4″ X 1-1/4″ Hammer drive anchor with stainless steel nail

Product Data SheetMSDS


Buildex Metal Stud Fastener

Metal Stud

(Standard)

#10 X 1-1/2″ Hex Washer Head Self Drilling (Tek) with attached neoprene washer.

Finish:

  • Climaseal Coated

Product Data SheetSDS


Buildex Metal Stud Scots Stainless Steel FastenerMetal Stud

(Scots® Stainless Steel Head)

12 X1-7/8″ Hex Washer Head Scots® Teks 3 Fastener. Self Drilling (Tek) with attached neoprene washer. Drill point #3.

Finish:

  • Stainless Steel Head

Product Data SheetSDS


Buildex Wood Stud Tru-Grip FastenerWood Framing

Tru-Grip GT

#9 X 2″ Hex Washer Head with attached neoprene washer. Attaching brick veneer anchors.

Finish:

  • Climaseal Coated

Product Data SheetSDS

Thin Stone Veneer:

Diamond Metal LathDiamond Metal Lath

Diamond Metal Lath is manufactured by slitting and stretching galvanized steel to form small opening to allow the keying of plaster so it will bond to the lath. Each sheet has square ends and smooth parallel edges for fast, easy handling and installation. Diamond Metal Lath can be bent easily to create curved surfaces.

Standard Size:

  • 2.5 lbs Galvanized, 27″ x 96″ sheets

 Product Data Sheet   SDS LEED


advancedmortairventMortairvent

(Stone Veneer Drainage)

Creates a drainage/ventilation cavity environment behind natural and manufactured stone veneer walls. The polymer core mesh creates the airspace, while the lighter fabric prevents mortar from seeping into the newly formed cavity.

Available in:

  • Dimensions: Width (less flap): 39 inches, Width (with flap): 43 inches, Length: 61.5 feet, Coverage Area: 200 square feet

 Product Data Sheet  AIS/SDS LEED


 Grace Wall Membrane above grade

wallmembrane

Wall Membrane

(Above Grade)

Self-adhesive, rubberized asphalt/polyethylene waterproofing membrane for air and vapor barrier applications.

Available in:

  • 36″ x 75′ Rolls

Product Data Sheet SDS LEED


No 15 lb felt Michigan control joint

  No. 15 lb Felt

(Michigan Control Joint)

 Product Data Sheet SDS


advanced

Weep ScreedWeep Screed®

Designed for use with Stone and Stone Veneers. Weep Screed should be installed at the plate line or stem wall. Allows moisture to migrate down and shed away from the wall.

Available in:

  • 3-1/2″ x 3/4″ x 10′ (holes pre-drilled 9″ o.c.)

Colors:

  • White, Tan and Gray

 Product Data Sheet SDS
