OnlineCorner Poles:
Post Corner System
The Post Speed Lead is the fastest, easiest to use speed lead you can buy. The Post Speed Lead was invented, perfected and patented by a bricklayer. It works on all application of brick veneering, outside or inside corners and quoined corners. Corners laid with the Post Speed Lead are straight and clean.
German (European) Line Pin
German Line Pin – Old world way of tying in corner pole bracket at base of wall.
Semi-round, fixed swivel, high tempered, forged steel.
L-Corner Bracket
Simplify corner pole setting improving bricklayer productivity.
Available in:
– Steel – 1-1/4″ x 24″ x 10″ x 1/4″ leg
Sturdy, adjustable, 1/4“ thick steel leg, angle corner L-bracket x 24″ with 5/16” diameter holes 1“ oc.
– Lightweight Aluminum – 1-1/4″ x 24″ x 12″ x 5/16″ leg
Sturdy, lightweight and adjustable, 5/16“ thick aluminum leg, angle corner L-bracket with 5/16” diameter holes 1“ oc.
Bullnoser™ CMU Router:
Bullnoser™ CMU Corner Router
1″ Radius Diamond Bullnose Router
- 1 piece diamond router bit/profile wheel
- Wet or Dry type profiling wheel designed for use on your 4″ grinder with a 5/8”-11w threaded arbor.
- Designed to produce perfect 1″ Radius Bullnose on concrete block!
Also for use on stone, granite and marble.
- Wheel Size: Diameter 95mm (3-7/8””)
- Diamond part: Diameter 75mm(3”)
- RADIUS 25mm(1”) high
Click here for Tips on How to Extend the Life of Your Router!
Diamond Blades:
DIAMOND BLADES
20″ Cobra™ – Premium Multipurpose Diamond Blade
20″ x .125″ x 1″ – 20mm x 10mm
Alternating turbo segmented blade with undercutting segments.
Best quality blade.
Very fast cutting and amazing blade life.
Variety cutting materials; from abrasives to hard materials.
Available in:
- 20″
14″ Cobra™ – Premium Multipurpose Diamond Blade
14″ x .125″ x 1″ – 20mm x 10mm
Alternating turbo segmented blade with undercutting segments. Fast Cutting.
Good quality and blade life at great value.
Variety cutting materials; from abrasives to hard materials.
14″ Gator™ – General Purpose Diamond Blades
High Speed Diamond Blades. General purpose cutting of block, brick and cured concrete.
Available in:
- 14″
20″ Gator™ – General Purpose Diamond Blade
Cutting for Wet/Dry Table Saw
Blade Size: 20” x .142 x 1
Segment Height: .394”/10mm
Available in:
- 20″
14″ Piranha™ – Turbo Segmented Diamond Blade
Turbo Segmented Blade
14″ x .125″ x 1″ – 20mm x 12mm
Unique split turbo segments with cooling holes for quick heat dissipation.
Fast and smooth cutting for block/concrete.
TUCK POINTING BLADES
Sandwich Tuck™ Pointing Blade
Unique design to remove old mortar from brick joints by cutting instead of grinding.
Application Specs: KR Series
Size: 4.5” x .375 x 7/8-5/8; Seg. Height: .394”/10mm
Tuck Pointing Blade
Blade features a double row of tuckpointing for aggressive mortar removal.
Application Specs: DTR5
Size: 4” x .250 x 7/8-5/8B; Seg. Height: .394”
Size: 4.5” x .250 x 7/8-5/8B; Seg. Height: .394”
Material Handling:
Gatorback Mortar Boards
Heavy Gauge Mortar Tub
Holds 10 cu.ft. of Mortar. (22″x56″x22″)

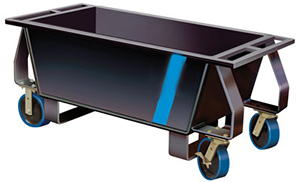

Heavy Duty Rolling Mortar Tub
Holds 10 cu.ft.
Heavy Duty Brick Tongs
Stretch Wrap
(90 ga)
Available in:
- 18″ x 1500′ Rolls
Stone Lifting & Shaping:
Stone Lifting Pins – Pin Lewis
Stone lifting device to set stone.
Sizes Available:
Pin Size & Length Capacity
-5/8″ x 4″ 1,500 lbs
-3/4″ x 4-1/2″ 3,000 lbs
Call on other sizes
Stone Lifting Clamps
These clamps are furnished with a 1/2″ stud at the base of the opening.
|
Maximum Opening
|
Depth
|
Capacity Tons
|
Weight
|
Lifting Capacity
|
|
3″
|
2-1/2″
|
3/4
|
8 lbs.
|
1500 lbs.
|
|
5″
|
3-1/2″
|
1
|
23 lbs.
|
2000 lbs.
|
|
8-3/4″
|
4-1/2″
|
2
|
79 lbs.
|
4000 lbs.
|
Stone Hammer with Carbide Tip
Carbide Tip Chisels
Grouting:
Grout Grunt™
Scoop, Pass, Pour
- Higher Capacity
- Faster Pours
- Monolithic (easy to clean)
- Rugged Durability, Sturdy
- Lightweight
- Saves time (up to 50% faster), transfer up to 1 cubic feet of material with each scoop.
- For a faster, easier and cleaner method of grouting, no more wall stains.
- Designed for the user and ergonomically friendly.
- Made from high-density HDPE plastic, the Grunt will withstand your toughest jobs.
- Product weighs under 3 lbs empty and approx. 50 lbs full.
- Designed BY a mason FOR masons!
Smart T-Bolt
Used to form clean-out covers for High Lift grouting.
Grout Pump GP-2HD
Hand operated; no electric or air power source needed. Easy to operate, minimal maintenance required. Pumps most types of cementitious grout (not for epoxy-type grouts) Makes an ideal tool for placing grout anywhere that high pressure is not required. Lightweight and compact.
Pump Type: Single Diaphragm, Self-Priming
Power Source: Hand Operated
*Output Capacity: 6 gallons/minute (48 cu. ft./hr)
Output Pressure: 0 to 15 psi
Hopper Capacity: 4.6 gallons
Discharge Head: 10 foot Vertical Lift
Net Weight: 21 pounds
Placement Hose Size: 1-1/2″ ID by 60″ long, Clear Vinyl
- Optional 3/4″ hose reducer kit
*Output and performance will vary depending on cycle rate, viscosity of the grout mixture and pressure conditions.
Pointing:
Quikpoint™ Mortar Gun
Model 2064 w/ Drill & Accessories
The Quick point™ Mortar gun has excellent mortar penetration and uses all standard U.B.C. and pre-mixed pointing mortars. Specially designed nozzle with 6 interchangeable steel tips, rotates for horizontal and vertical joints. Vibrator fed auger drive assures constant mortar bead. Quick clean up by simply flushing with water.
Product Information
Quikpoint Parts List
Blue Tip Grout Bags
This bag is constructed of white plastic and has an ideal, easy-to-cut, soft plastic tip which allows controlled flow without clogs. The seams are fused together to create a strong, water tight seal. No protruding stitched seams which can get caught in the joints when grouting. No moisture leakage, no blowouts! A smooth inner lining aids in grout flow and washout.
Wall Safety:
Rebar Safety Cap
OSHA Approved!
Also Available:
- N95 Disposable Dust Masks
- Soft Seal Ear Plugs
- Safety Glasses (Clear & Dark)
- Caution Tape (3′ x 1000′)
Scaffolding Tie
Used to safely tie scaffolding to a masonry wall.
Available in:
- 5″
- 9″
Mason Tools:
Trowels
Handles Available:
JOINTERS
Ultra Hard ‘S” Jointer
Available in:
- 5/8″ x 3/4″
Solid Sled Runner
Available in:
- 18″ x 5/8″
Barrel Jointer
Available in:
- 8-1/2″ x 2-1/2″
- Barrel Sizes: 1/2″, 5/8″, 3/4″ & 7/8″
Combo Rake-Jointer
Available in:
- 3/4″ jointer, 5/16″ rake
Skate Rake Jointer
Available in:
- 8-1/2″ x 3″
Jointer
Available in:
- 3/8″ x 1/2″ Jointer
- 1/2″ x 5/8″ Jointer
Also Available (please call 1-800-659-4731):
- Acrylic Jointers (Glass Block)
- Diamond “V” Head Jointers
- Rope Jointers
LINE ACCESSORIES
Super Tough Braided Line
(685′)
Available in:
- Yellow/Black- 216 lb
Bonded Braided
Nylon Line
(500′)
Available in:
- Black/White – 150 lb
- Black/Green – 170 lb
Adjustable Mason Line Stretcher
Available in:
- 4-12 inches
Wall Finishing:
Wall Scraper
Also available: 6′ extension handle that extends wallscraper to 11′
- Removes excess mortar from block or brick
- Removes fins and burs from concrete wall form joints
- Powder coated painted handle
- Swivel head adjusts for easy use in difficult areas
- In hallway areas scaffolding can be completely removed allowing more access by all trades
- Less chance for injury while laborers work on scaffold
- The time saved climbing up and down scaffolding will pay for itself on the first day
- Extra Blades Also Available
Rubbing Pads
Semi rigid, porous, polyethelene foam brick.
Available in:
- 2″ x 4″ x 8″
Horsehair Bricklayer Brush
13″ Soft Horsehair Bricklayer Brush
Fluted Rubbing Stones
Available in:
- 8″ x 2″ x 2″
Cleaning Tools:
Brush
Plastic Block Acid Brush with Nylon Tip 48″ Threaded Handle.
Wall Scraper
- Extra Blades Also Available
Wall Scrapers/Handles
- 4″ Wall Scraper
- 7″ Wall Scraper
- 72″ Tapered Wood Handle
1SS Stainless Steel Wire Brush
Curved handle wire scratch brush. Round Stainless Steel wire bristles.
Bristles and scraper remove difficult mortar buildup.
1SC Wire Brush
Curved handle wire scratch brush. Round carbon steel wire bristles.
Bristles and scraper remove difficult mortar buildup.
Window Protection
- 24″ x 600′ Rolls
14” Heavy Duty Floor Scraper
22” Heavy Duty Floor Scraper
